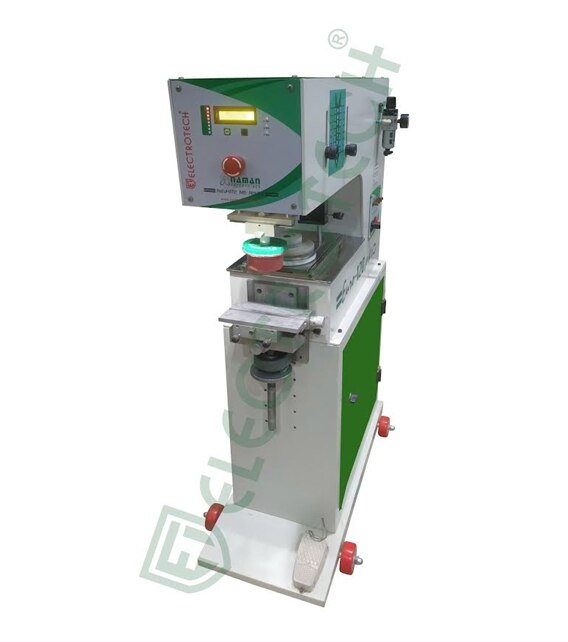

Single Color Pneumatic Pad Printing Machine

Engineered for performance and precision, this single color pad printing machine combines robust construction with smart control technology to deliver reliable printing results. The machine features one-color printing capability with a large 130 mm doctoring cup, ensuring excellent ink consistency and clean transfers. Designed for medium-to-high production requirements, it achieves a maximum print speed of up to 1,500 impressions per hour while maintaining sharp image quality.

With a generous cliché/plate size of 150 × 300 mm and a maximum print image size of 120 mm, the machine is ideal for larger logos, text, and detailed graphics. It supports products with a height of up to 300 mm, making it suitable for a wide range of industrial components. The system is powered by an advanced microprocessor-based control unit, operating on 12/24 VDC control voltage for stable and precise operation. An electro-pneumatic drive ensures smooth and efficient motion, working reliably at an operating pressure of 5–7 bar with an air consumption of approximately 80 liters per minute.

Energy-efficient by design, the machine consumes only 50 watts of power and runs on a standard 230 VAC / 50 Hz power supply. Its solid and space-optimized structure, with approximate dimensions of 800 mm (L) × 330 mm (W) × 1,260 mm (H) and a weight of around 126 kg, provides excellent stability during operation. Built for durability, accuracy, and consistent performance, this machine is an ideal choice for demanding pad printing applications in industrial and commercial environments.
