Motorized Pad Printing Machine
Description

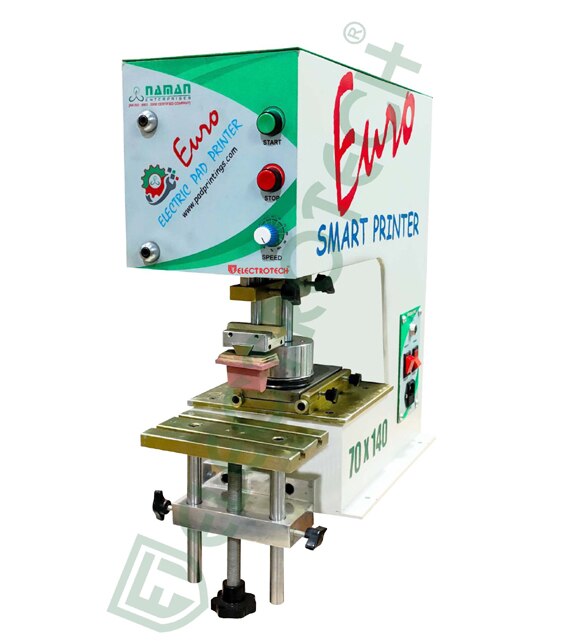

Motorised Pad Printing Machine
The Motorised Pad Printing Machine is a powerful, precision-driven printing solution designed for high accuracy, repeatability, and smooth operation. Engineered with a robust motorised drive system, this machine delivers consistent and sharp prints while minimizing operator fatigue and production variability. It is an ideal choice for industries that demand reliable performance, clean impressions, and long operational life.
Unlike conventional pneumatic systems, the motorised mechanism ensures controlled pad movement, uniform pressure, and excellent print clarity across flat, curved, and irregular surfaces. This pad printing machine is easy to operate, economical to maintain, and suitable for continuous production environments. It supports printing on a wide range of materials such as plastic, metal, glass, ceramic, rubber, and coated components.
Widely used in promotional products, electronics, automotive parts, medical devices, toys, packaging, and consumer goods, the motorised pad printing machine offers a perfect balance of speed, precision, and durability. Its compact design allows easy integration into existing production setups while maintaining high productivity and consistent quality.
Specifications
| Model | Euro - 55e |
|---|---|
| Print Image Size [ mm] | 55 |
| Cliche/Plate Size [mm] | 70 x 140 |
| Print Speed [Max./Hrs] | 2000 |
| Doctoring Cup Dia [mm] | 60 |
| No. of Colors | 1 |
| Product Height [mm] | 150 |
| Power Supply | 230 VAC/50Hz. |
| Weight kgs (Approx)[Kgs] | 38 |
| Control Voltage | 09/12 VDC |
| Power Consumption [W] | 120 |
| Dimensions (Approx)[mm] | 470 x 260 x 490 |
| Control System | Electrical |
